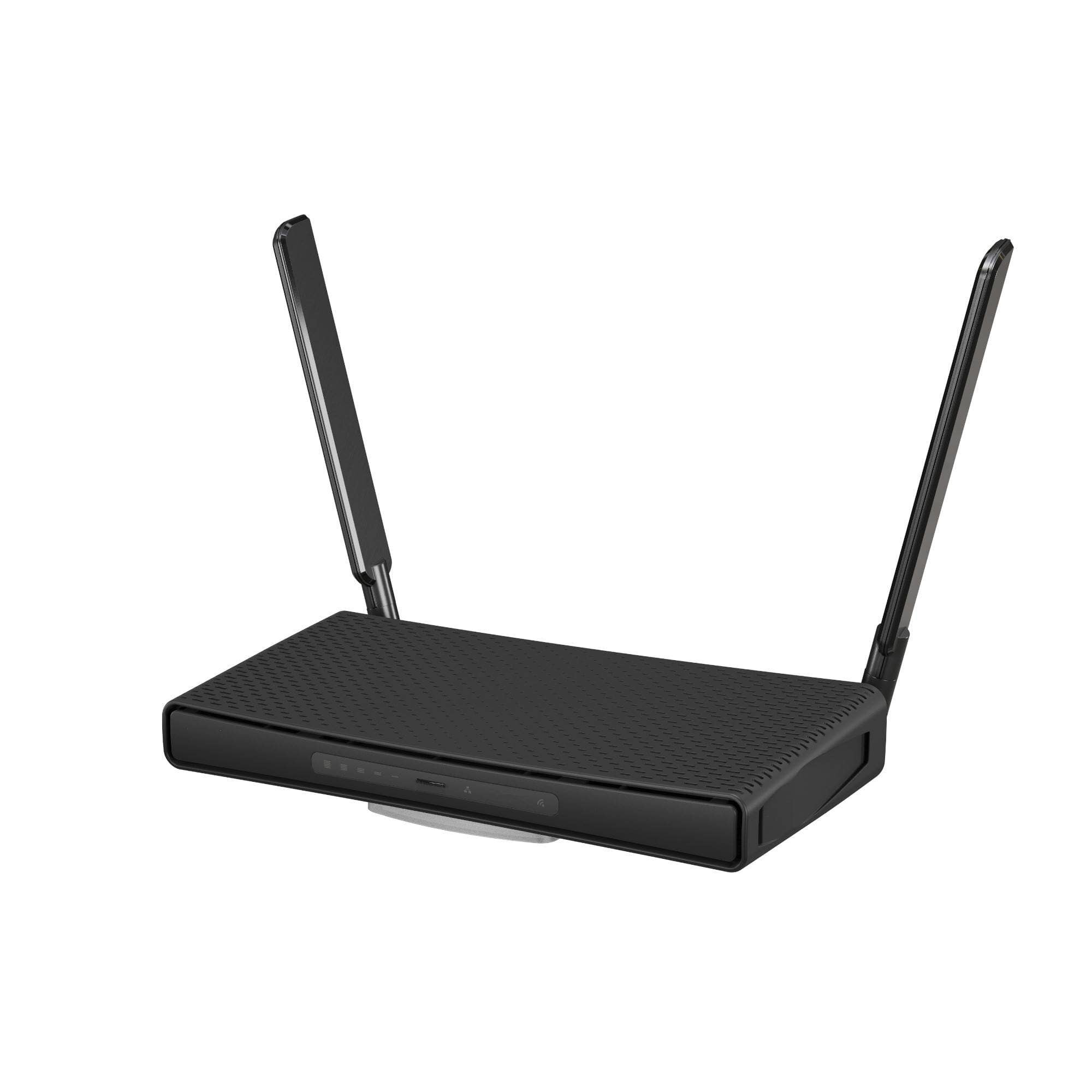

Le hAP ac3 est un point d’accès simultané offrant une couverture Wifi pour les fréquences de 2,4 GHz et 5 GHz simultanément.
Avec 5 ports Ethernet Gigabit, 256 Mo de RAM et un processeur quad-core, hAP ac³ peut satisfaire même les foyers les plus grands et les plus exigeants. Avec le support PoE, il peut alimenter ou être alimenté par d'autres appareils. Il existe un NAND de 128 Mo et un port USB pleine taille que vous pouvez utiliser pour ajouter du stockage supplémentaire.
Le nouveau boîtier permet de monter l'appareil verticalement ou horizontalement. Un ensemble de montage mural est également inclus.
Specifications
Details |
Product code |
RBD53iG-5HacD2HnD |
Architecture |
ARM 32bit |
CPU |
IPQ-4019 |
CPU core count |
4 |
CPU nominal frequency |
716 MHz |
Dimensions |
251 x 129 x 39 mm |
RouterOS license |
4 |
Operating System |
RouterOS |
Size of RAM |
256 MB |
Storage size |
128 MB |
Storage type |
NAND |
MTBF |
Approximately 100'000 hours at 25C |
Tested ambient temperature |
-40°C to 70°C |
IPsec hardware acceleration |
Yes |
Suggested price |
$99.00 |
Wireless capabilities
Details |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
3 |
Wireless 2.4 GHz chip model |
IPQ-4019 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Wireless 5 GHz Max data rate |
867 Mbit/s |
Wireless 5 GHz number of chains |
2 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
5.5 |
Wireless 5 GHz chip model |
IPQ-4019 |
Wireless 5 GHz generation |
Wi-Fi 5 |
AC speed |
AC1200 |
Ethernet
Details |
10/100/1000 Ethernet ports |
5 |
Number of 1G Ethernet ports with PoE-out |
1 |
Peripherals
Details |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Powering
Details |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-28 V |
Max power consumption |
30 W |
Max power consumption without attachments |
12 W |
Cooling type |
Passive |
PoE in |
Passive PoE |
PoE in input Voltage |
18-28 V |
PoE-out
Details |
PoE-out ports |
Ether5 |
PoE out |
Passive PoE |
Max out per port output (input 18-30 V) |
0.5 A |
Max total out (A) |
0.5 A |
Certification & Approvals
Details |
Certification |
CE, FCC, IC, EAC, ROHS |
IP |
IP20 |
Other
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
25 |
-100 |
11MBit/s |
25 |
-94 |
6MBit/s |
26 |
-96 |
54MBit/s |
23 |
-78 |
MCS0 |
26 |
-96 |
MCS7 |
22 |
-73 |
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
6MBit/s |
26 |
-96 |
54MBit/s |
22 |
-80 |
MCS0 |
26 |
-96 |
MCS7 |
21 |
-75 |
MCS9 |
19 |
-70 |
