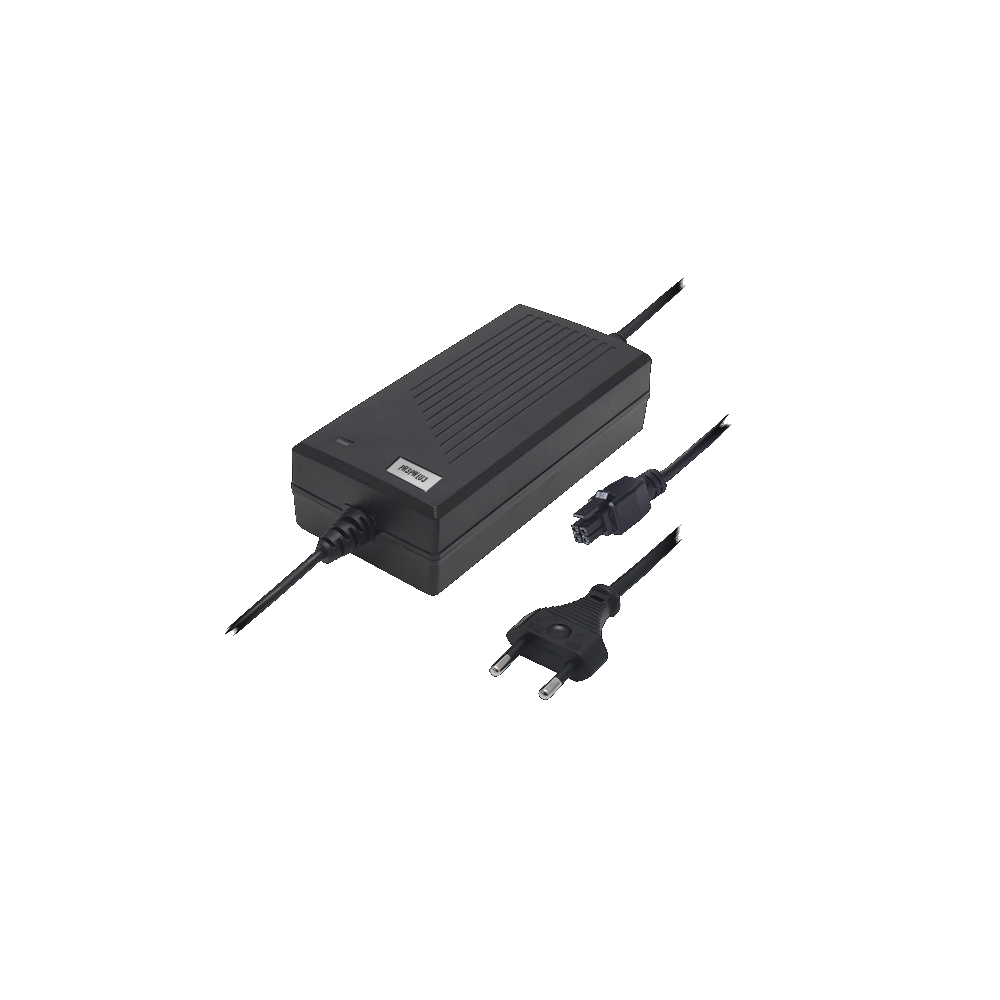

Teltonika PR3PWEU3
CHF23.59
Tax included
50V - 1.3A - 65W - prise Teltonika
y compris câble CH / EU
| Parameters | ||
|---|---|---|
| Rated value | Absolute maximum | |
| Input voltage | 100 - 240 VAC | 90 - 264 VAC |
| Input Frequency | 50/60 Hz | 47 - 63 Hz |
| Input Current (@100-240 VAC) | 1,8 A | - |
| Inrush Current (@100-240 VAC) | - | 40 A |
| Output Voltage | 50 VDC | 47,5 - 52,5 VDC |
| Output Current | 0-1,3 A | - |
| Overshoot | - | 10 % |
| Certification | EN 62368-1:2014+A11:2017 EN 55032:2015 EN 61000-3-2:2014, EN 61000-3-3:2013 |
|
| Short-Circuit protection | ||
| Input protection | Fuse | |
| HIPOT (Dielectric Withstand Test) | Primary to Secondary: AC3000V | |
| MTBF | 50000 h | |
| Input connector | EU | |
