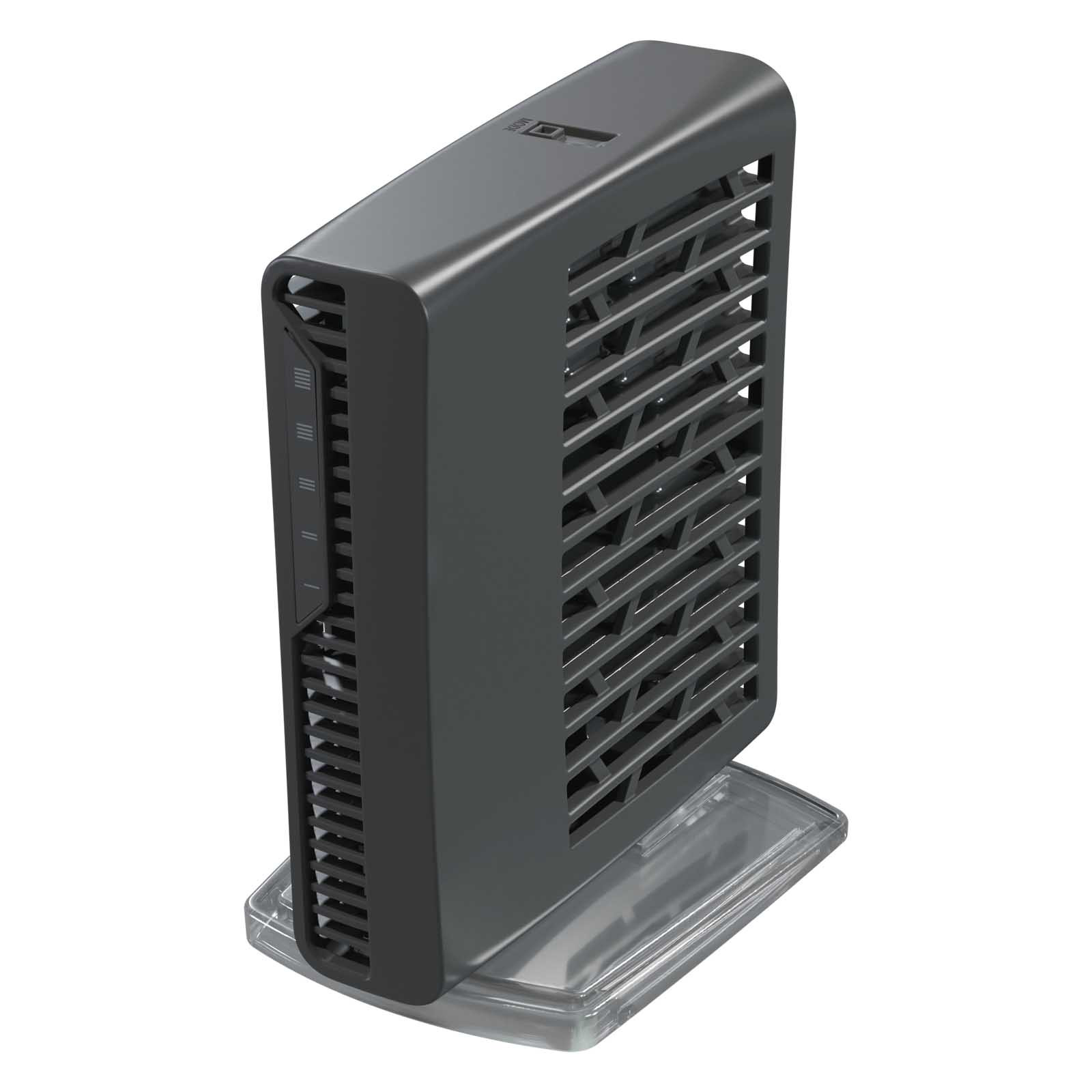

hAP ax² is the latest edition of the hAP series. It is the smallest fully-fledged AX router on the market.
hAP ax² is equipped with dual-chain 4-4.5 dBi radio and supports the 802.11ax and Wave2 standards. These features allow providing up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! The higher wireless speed helps to work with large media files over the wireless network without any delays.
The modern quad-core CPU running at 864 MHz combined with a large RAM capacity ensures the seamless implementation of important operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. In addition, hAP ax² supports WPA3 advanced encryption making your network safer than ever before.
Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal!
Wireless Network
Standards
802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO
2.4GHz 2x2, 5GHz 2x2
2.4GHz Radio Rate
573Mbps
5GHz Radio Rate
1.2Gbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.483 (GHz) 4.5 (dBi), 5.15 - 5.875 (GHz) 4 (dBi)
Interfaces
RJ45 Ports
(5) 1 Gbps
Number of PoE Ports
1 pcs
PoE Out Standards
Passive PoE
Management
Ethernet, Wi-Fi
System Specification
Chipset
QCN-5052, 4 core, 864 MHz
RAM
1 GB
Storage Memory
128 MB
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
12 - 28 V DC
Max Power Consumption
12 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
24 V DC 1.2 A
Physical Parameters
Color
Black
Ingress Protection Code
IP20
Dimensions
120 x 101 x 37 mm
Operating Temperature
-40 °C to 50 °C
Environment
Indoor
Form Factor
Desktop
Mounting Method
Wall Mount, Tabletop
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 4
