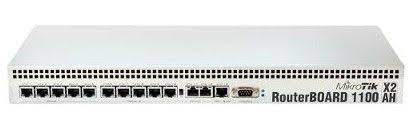

RB1100AHx2 is 1U rackmount Gigabit Ethernet router - with a dual core CPU, it can reach up to a million packets per second and supports hardware encryption!
It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 2GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.
The RB1100AHx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.
Product code |
RB1100AHx2 |
Architecture |
PPC |
CPU |
P202ASSE2KFB |
CPU core count |
2 |
CPU nominal frequency |
1066 MHz |
Dimensions |
1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g |
RouterOS license |
6 |
Operating System |
RouterOS |
Size of RAM |
2 GB |
Storage size |
128 MB |
Storage type |
NAND |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-35°C to 70°C |
IPsec hardware acceleration |
Yes |
Suggested price |
$349.00 |
Powering
Details |
Number of AC inputs |
1 |
AC input range |
100-240 |
Number of DC inputs |
2 (PoE-IN, 2-pin terminal) |
2-pin terminal input Voltage |
7-28 V |
Max power consumption |
25 W |
Cooling type |
2 |
PoE in |
Passive PoE |
PoE in input Voltage |
10-28 V |
Ethernet
Details |
10/100/1000 Ethernet ports |
13 |
Peripherals
Details |
Memory card type |
microSD |
Memory Cards |
1 |
Serial console port |
RS232 |
Other
Details |
CPU temperature monitor |
Yes |
Current Monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Beeper |
Yes |
