Teltonika RUTXR1 – Enterprise Rack-Mountable SFP/LTE Router

Teltonika RUTXR1 is the first-ever rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.

This feature-rich device is powered by RutOS and is a perfect choice, where a speedy and ultra-reliable connection is required!

Specifications:

• Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps
• Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
• WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

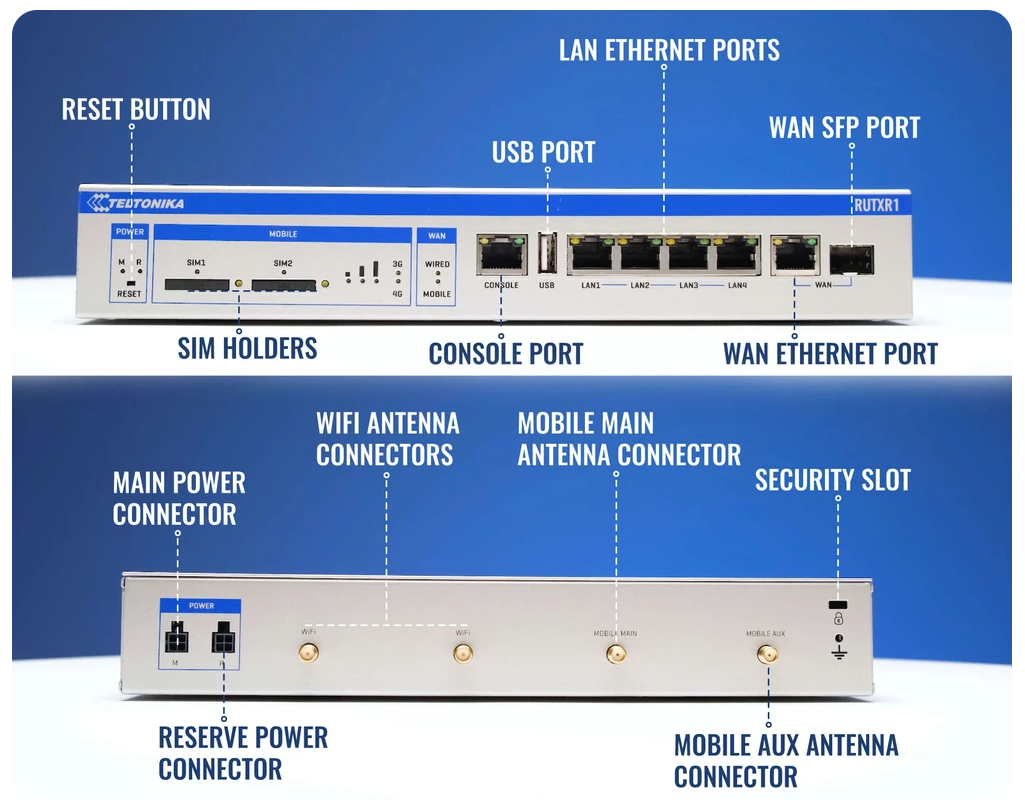

• Fiber: 1 x SFP port (cannot work simultaneously with Ethernet WAN port)
• LAN:  4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• RAM: 256 MB, DDR3
• Power: 2 x 4 pin DC connector
• Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi
• Dimensions: 272 x 42.6 x 122.6 mm (W x H x D)
• Weight: 1050 g

In the box:

• RUTXR1
• 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)

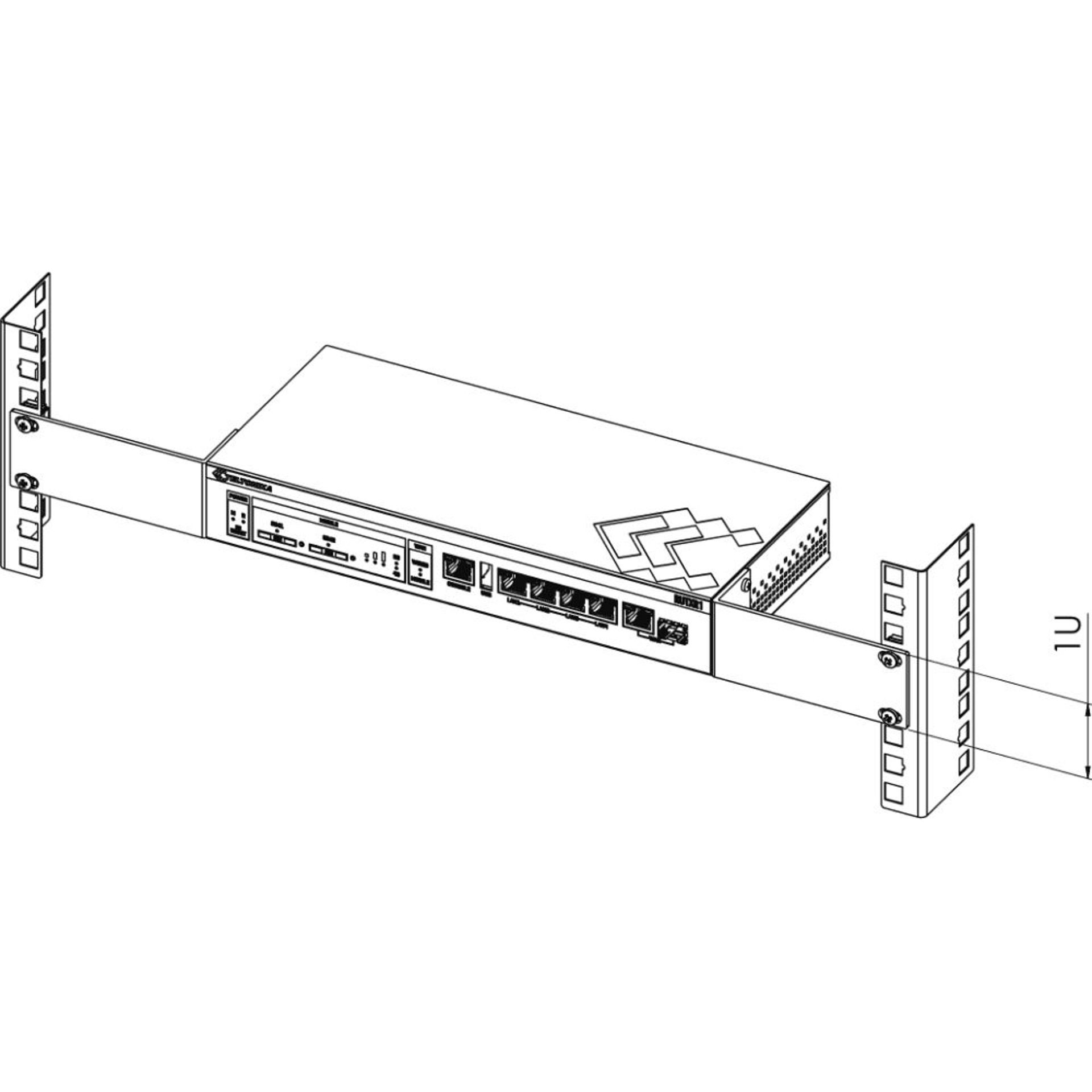

• Rack – mounting kit
• SIM needle
• 18W Euro PSU
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
