TSW100 - POE+ SWITCH

CHF90.00
Tax included

Switch 5ports - 4 ports POE+ -  65W PSU

Add to Cart
Reference TSW100 Category Teltonika Brand Teltonika In stock 19 Items
Facebook Twitter Pinterest

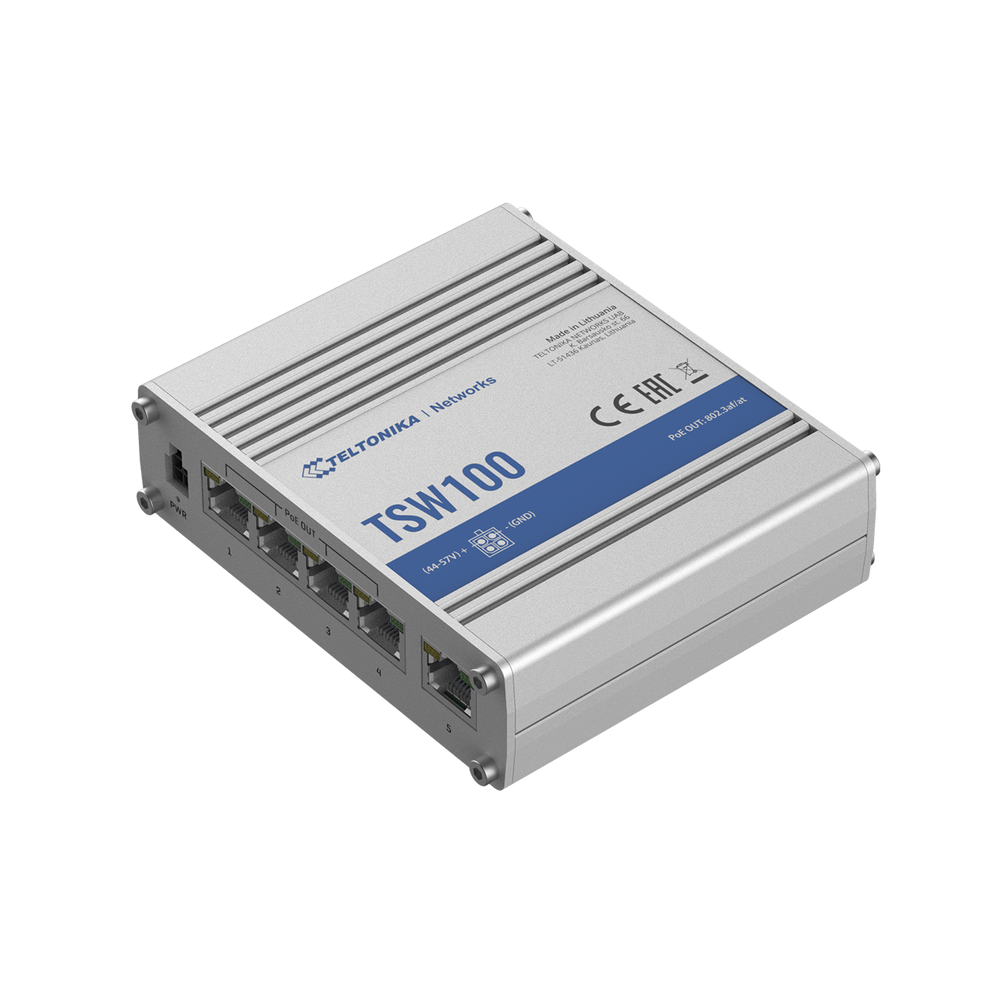

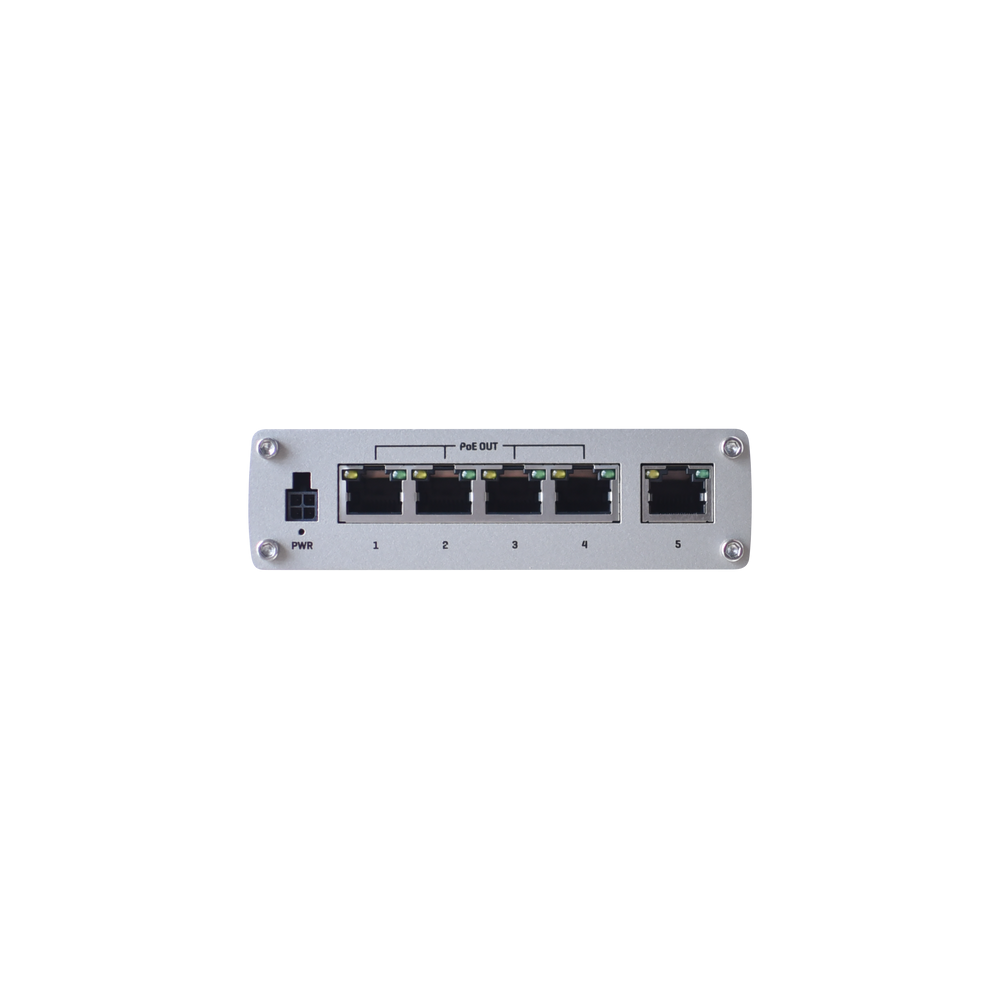

Teltonika TSW100 Industrial Unmanaged PoE+ Switch

Teltonika TSW100 Industrial Unmanaged PoE+ Switch is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). Classified as Power Source Equipment (PSE), the TSW100 PoE+ Switch enables centralization of the power supply, providing up to 30W per port and reducing the effort for installing power.

The Teltonika TSW100 Industrial Unmanaged PoE+ Switch is ideal for professional high bandwidth applications where it is necessary to provide both a reliable data connection and a power supply.

FEATURES

  • PoE standard: 802.3af/at (max 30W per port, total power budget 120W)
  • Ethernet:
    • 5x 10/100/1000 Ethernet ports
      • 4x PoE
      • 1x Uplink
  • Bandwidth: Bandwidth 10Gbps
  • Packet buffer: 128KB
  • MAC address table size: 2K entries
  • Auto MDI/MDI-X Cable Detection: Yes
  • Status LEDs
    • 10x Ethernet
    • 1x Power
  • Ingress protection rating: IP30
  • Power supply: 4-pin power socket, 7V to 57V
  • Power consumption
    • Idle: <2W
    • Maximum: <9W with no PoE devices connected
  • Operating temperature: -40°C to +75°C
  • Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
  • Dimensions: 115mm x 32mm x 95mm
  • Weight 340g
  • Installation: Desktop, wall, or DIN Rail mountable (additional kit needed)

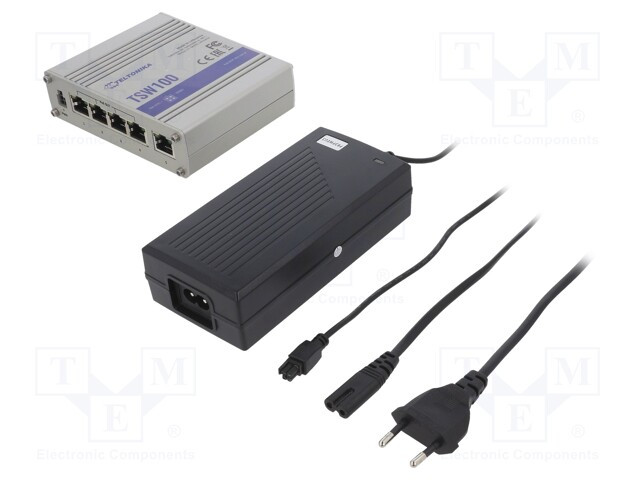

KIT CONTENTS

  • TSW100
  • 65W power supply
  • Quick Start Guide
