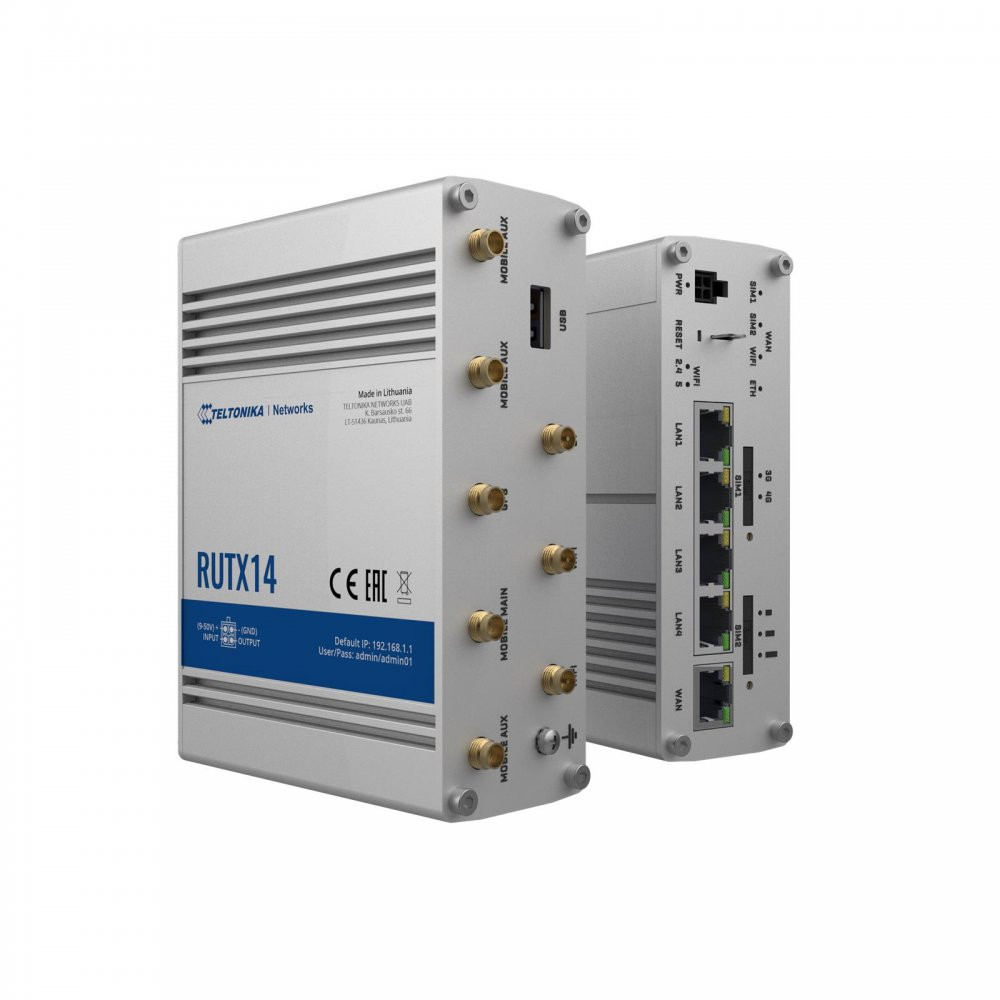

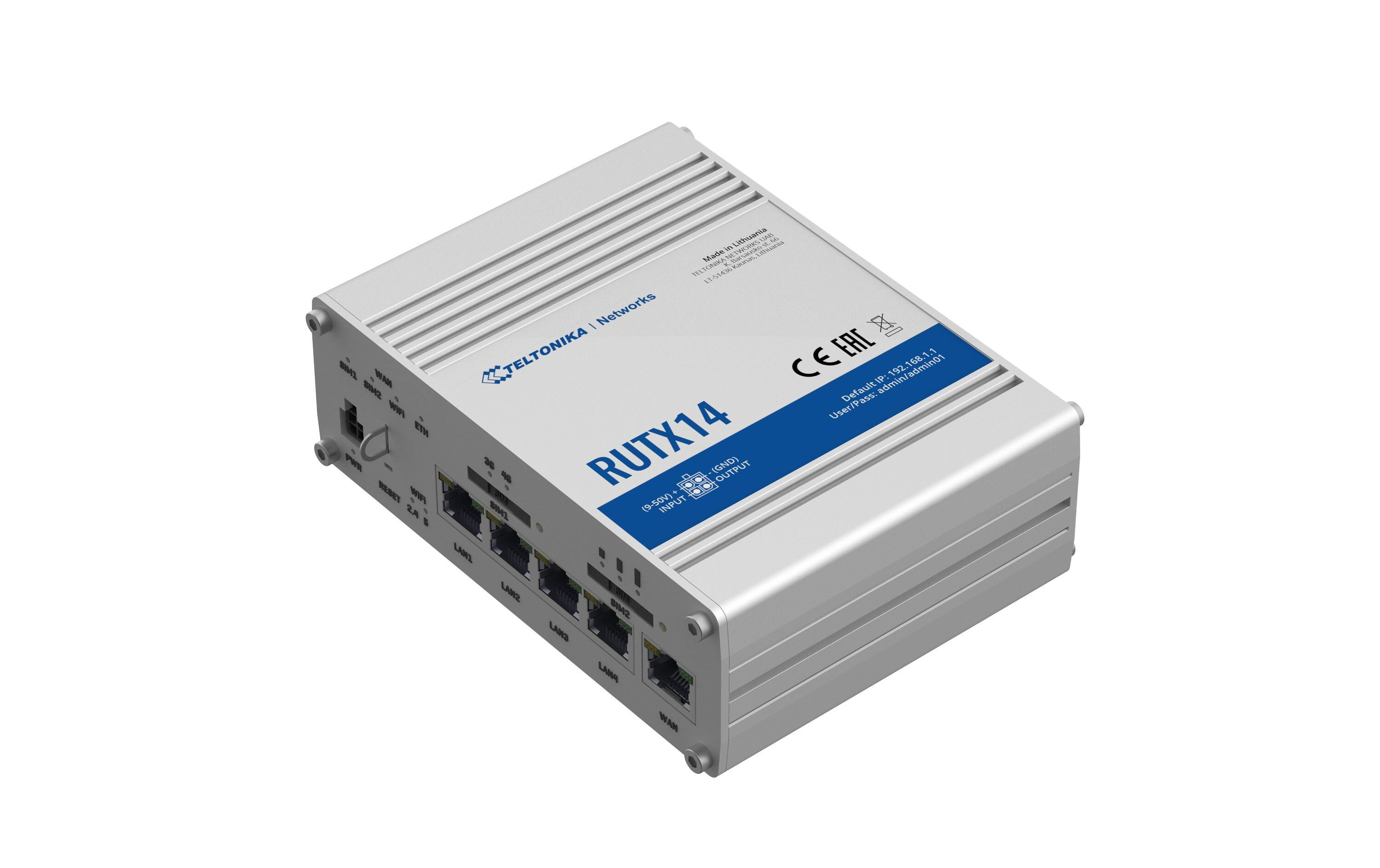

Teltonika RUTX14 industrial router is a highly reliable and secure 4G Machine to Machine router for professional applications. The RUTX14 delivers high performance, mission-critical cellular. Through the dual SIM failover function of RUTX14 the LTE Router offers the possibility to build a redundant 4G connection. The external antenna connectors allow the use of an external, high-performance LTE antenna.
Teltonika RUTX14 industrial router features 5x Gigabit Ethernet ports, Wave-2 802.11ac dual-band Wi-Fi, Bluetooth LE, USB interfaces, dual SIM for advanced throughput and ultra-reliable connectivity. It is equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention. The combination of fast LTE Cat. 12 connectivity, a wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.
The user-friendly web interfaces make setting up the RUTX14 easy and fast. If you manage larger numbers of routers, we recommend that you manage the routers remotely with the Teltonika RMS. For support and the latest firmware updates, visit the Teltonika Wiki knowledge base.
Mobile Network
Mobile Network Generation
2G (GSM), 3G (UMTS), 4G (LTE)
LTE Category
Cat12 - 600Mbps/100Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1400MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Micro-SIM, Dual SIM
Wireless Network
Standards
802.11ac Wave2
MIMO
2.4GHz 2x2, 5GHz 2x2
2.4GHz Radio Rate
300Mbps
5GHz Radio Rate
867Mbps

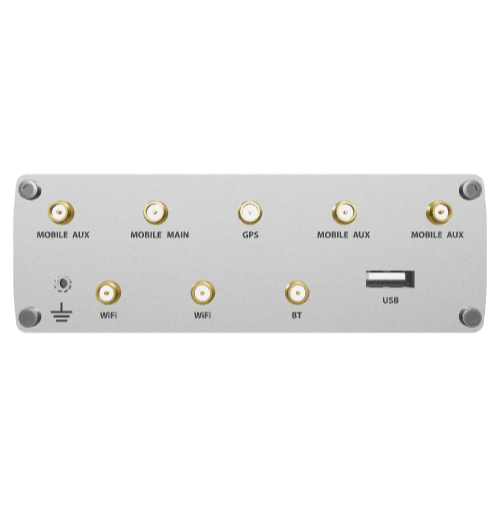

Connectors
RF Connectors
(5) SMA Female, (3) RP-SMA Female
Interfaces
RJ45 Ports
(5) 10/100/1000 Mbps
USB Ports
(1) USB-A 2.0
System Specification
Chipset
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB
Storage Memory
256 MB
Power
Power Method
AC/DC Adapter
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 50 V DC
Max Power Consumption
22 W
Physical Parameters
Material
Aluminium
Dimensions
132 x 44 x 95 mm
Weight
0.515 kg
Operating Temperature
-40 °C to 75 °C
Mounting Method
DIN Rail
Package Сontains
External Power Supply
Included
