The TCR100 is a reliable and convenient 4G Wi-Fi router for home or office use. The TCR100 works in the 2.4 and 5 GHz frequency bands. It has one SIM card slot and two RJ-45 Ethernet ports. The data transfer speed is up to 300 Mbps.

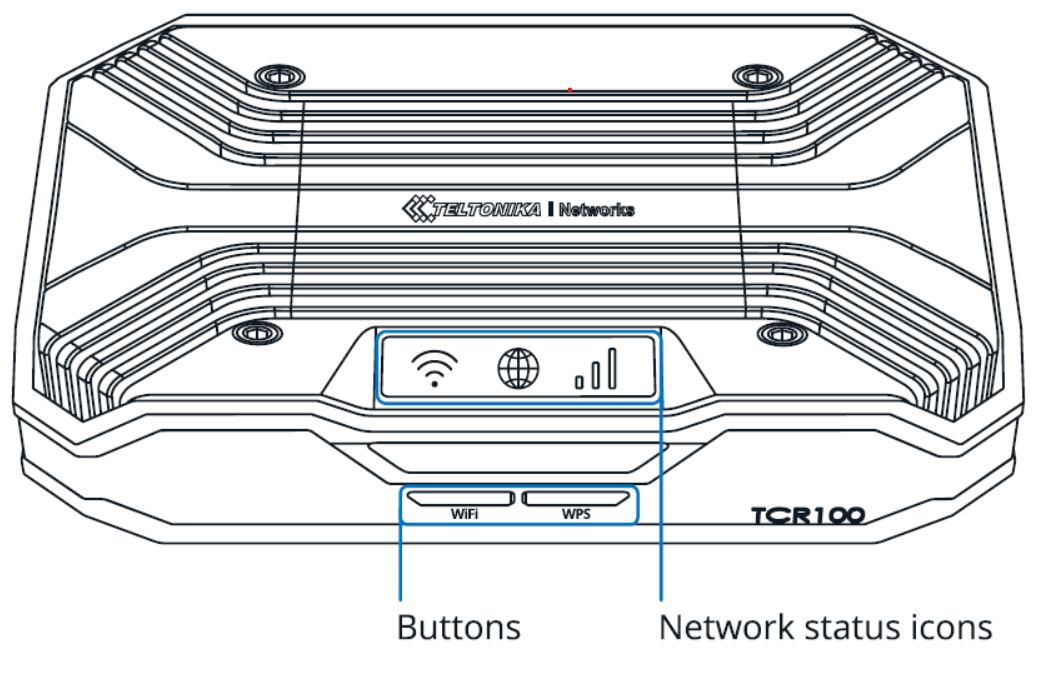

2 specials buttons on front side for wifi (on/off + wps).
Mobile Network
Mobile Network Generation
3G (UMTS), 4G (LTE)
LTE Category
Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1400MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Mini-SIM
Wireless Network
Standards
802.11b/g/n, 802.11ac
MIMO
2.4GHz 2x2, 5GHz 1x1
Antenna
Antenna Design
Omni
VSWR
< 3
Impedance
50 Ω
Connectors
RF Connectors
(2) SMA Female
Interfaces
RJ45 Ports
(2) 10/100 Mbps
System Specification
Chipset
QCA9531, MIPS 24kc, 650 MHz
RAM
128 MB
Storage Memory
16 MB
Power
Power Method
AC/DC Adapter
Supported Input Voltage
9 - 30 V DC
Max Power Consumption
9.3 W
Power Connector
Terminal Block
Physical Parameters
Color
Black
Material
Plastic
Dimensions
150 x 37 x 105 mm
Weight
0.376 kg
Operating Temperature
-40 °C to 75 °C
Environment
Indoor
Form Factor
Desktop
Package Сontains
External Power Supply
Included
